SELECT CASE Construct

The SELECT CASE Construct is similar to an IF construct. It is a useful control construct if one of several paths through an algorithm must be chosen based on the value of a particular expression.

    SELECT CASE (i)
      CASE (3,5,7)
        PRINT*,"i is prime"
      CASE (10:)
        PRINT*,"i is > 10"
      CASE DEFAULT
        PRINT*, "i is not prime and is < 10"
    END SELECT

The first branch is executed if i is equal to 3, 5 or 7, the second if i is greater than or equal to 10 and the third branch if neither of the previous has already been executed.

A slightly more complex example with the corresponding IF structure given as a comment,

      SELECT CASE (num)

       CASE (6,9,99,66)
     ! IF(num==6.OR. .. .OR.num==66) THEN
        PRINT*, "Woof woof"

       CASE (10:65,67:98)
     ! ELSEIF((num.GE.10.AND.num.LE.65) .OR. ...
        PRINT*, "Bow wow"

       CASE (100:)
     ! ELSEIF (num.GE.100) THEN
        PRINT*, "Bark"

       CASE DEFAULT
     ! ELSE
        PRINT*, "Meow"

      END SELECT
     ! ENDIF

Important points are,

• the < case-expr > in this case is num.
• the first < case-selector >, (6,9,99,66) means ``if num is equal to either 6, 9, 66 or 99 then'',
• the second < case-selector >, (10:65,67:98) means ``if num is between 10 and 65 (inclusive) or 67 and 98 (inclusive) then'',
• (100:) specifies the range of greater than or equal to one.
• if a case branch has been executed then when the next < case-selector > is encountered control jumps to the END SELECT statement.
• if a particular case expression is not satisfied then the next one is tested.

(An IF .. ENDIF construct could be used but a SELECT CASE is neater and more efficient.)

SELECT CASE is more efficient than ELSEIF because there is only one expression that controls the branching. The expression needs to be evaluated once and then control transferred to whichever branch corresponds to the expressions value. An IF .. ELSEIF ... has the potential to have a different expression to evaluate at each branch point making it less efficient.

Consider the SELECT CASE construct,

      SELECT CASE (I)
       CASE(1);   Print*, "I==1"
       CASE(2:9); Print*, "I>=2 and I<=9"
       CASE(10);  Print*, "I>=10"
       CASE DEFAULT; Print*, "I<=0"
      END SELECT CASE

this maps onto the following control flow structure,

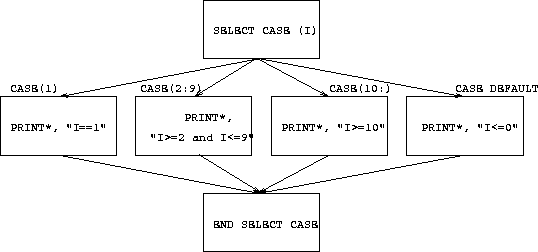

Figure 5: Visualisation of a SELECT CASE Construct

The syntax is as follows,


 [ < name >: ] SELECT CASE < case-expr >

		 [ CASE < case-selector > [ < name > ]

		 		 < exec-stmts > ] ...

		 [ CASE DEFAULT [ < name > ]

		 		 < exec-stmts > ]

END SELECT  [ < name > ]

Note,

• the < case-expr > must be scalar and INTEGER, LOGICAL or CHARACTER valued;
• there may be any number of general CASE statements but only one CASE DEFAULT branch;
• the < case-selector > must be a parenthesised single value or a range (section with a stride of one), for example, (.TRUE.) or (99:101). A range specifier is a lower and upper limit separated by a single colon. One or other of the bounds is optional giving an open ended range specifier.
• the < case-expr > is evaluated and compared with the < case-selector >s in turn to see which branch to take.
• if no branches are chosen then the CASE DEFAULT is executed (if present).
• when the < exec-stmts > in the selected branch have been executed, control jumps out of the CASE construct (via the END SELECT statement).
• as with other similar structures it is not possible to jump into a CASE construct.

CASE constructs may be named -- if the header is named then so must be the END SELECT statement. If any of the CASE branches are named then so must be the SELECT statement and the END statement

A more complex example is given below, this also demonstrates how SELECT CASE constructs may be named.

     ...
    outa: SELECT CASE (n)
     CASE (:-1) outa
      M = -1
     CASE (1:) outa
      DO i = 1, n
       inna: SELECT CASE (line(i:i))
        CASE ('@','&','*','$')
         PRINT*, "At EOL"
        CASE ('a':'z','A':'Z')
         PRINT*, "Alphabetic"
        CASE DEFAULT
         PRINT*, "CHAR OK"
       END SELECT inna
      END DO
     CASE DEFAULT outa
      PRINT*, "N is zero"
     END SELECT outa

Analysis:

• the first SELECT CASE statement is named outa and so is the corresponding END SELECT statement.
• the < case-expr > in this case is n this is evaluated first and its value stored somewhere.
• the first < case-selector >, (:-1) means ``if n is less than or equal to -1'' so if this is true then this branch is executed -- when the next < case-selector > is encountered, control jumps to the END SELECT statement.
• if the above case expression is not satisfied then the next one is tested. (1:) specifies the range of greater than or equal to one. If n satisfies this then the DO loop containing the nested CASE construct is entered. If it does not then the DEFAULT action is carried out. In this case this branch corresponds to the value 0, the only value not covered by the other branches.
• the inner case structure demonstrates a scalar CHARACTER < case-expr > which is matched to a list of possible values or, indeed, a list of possible ranges. If the character substring line(i:i) matches a value from either the list or list of ranges then the appropriate branch is executed. If it is not matched then the DEFAULT branch is executed. Note a CHARACTER substring cannot be written as line(i)
• this inner case structure is executed n times, (due to the loop,) and then control passes back to the outer case structure. Since the executable statements of the case branch have now been completed the construct is exited.
